Adjusting Track Tension on Caterpillar Heavy Equipment (Practical Guide)

Track tension is one of those maintenance tasks that operators often overlook. And then it winds up costing them. Whether you’re purchased a brand new CAT excavator, dozer, or compact track loader, improper track tension leads to faster wear, reduced efficiency, and in the worst cases, machine downtime.

Here’s a no-nonsense guide to adjusting track tension the right way.

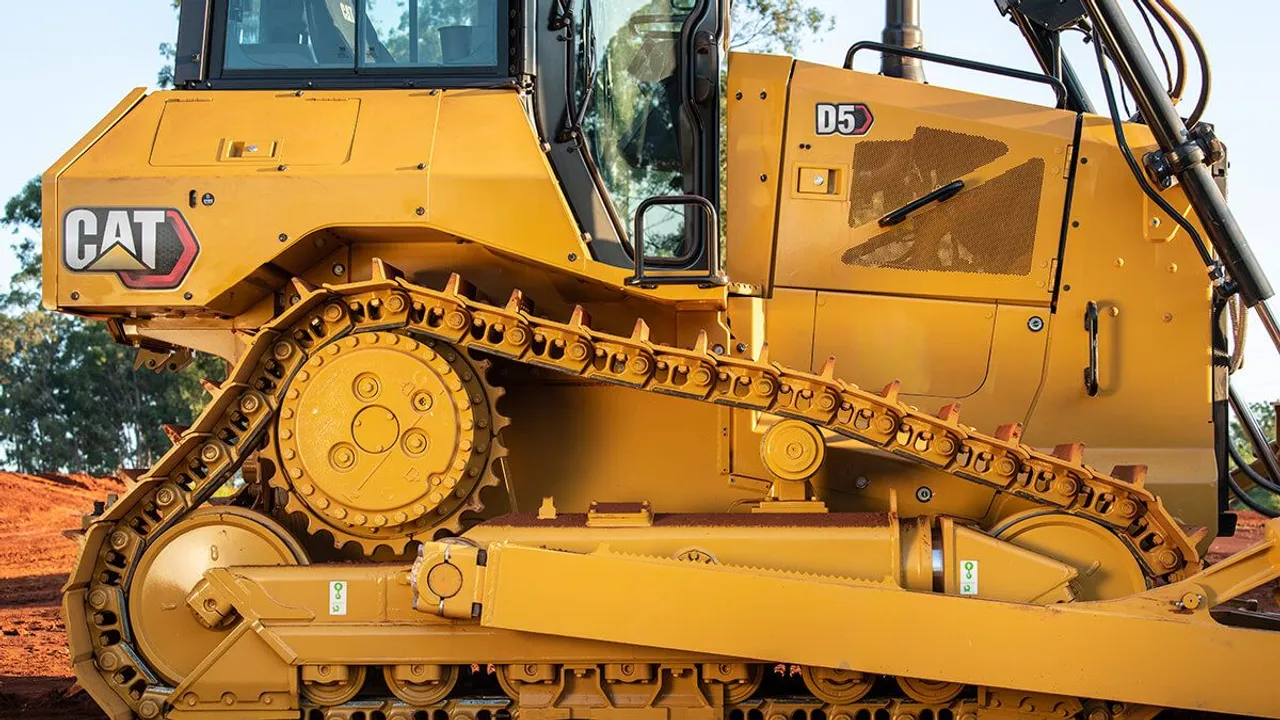

Why Track Tension Matters

Tracks are designed to operate within a specific tension range. Too loose, and they derail (de-track), causing immediate downtime and potential damage to undercarriage components. Too tight, and they accelerate wear on rollers, sprockets, idlers, and the track itself—while also increasing fuel consumption.

Caterpillar estimates that undercarriage wear accounts for up to 50% of a machine’s lifetime maintenance costs. Keeping track tension in spec is one of the simplest ways to protect your bottom line.

Understanding Track Tension Basics

For Caterpillar equipment, track tension specifications vary by model but generally follow a similar principle: a slight sag is normal and necessary for proper operation.

Typical Tension Spec Example:

CAT 320 Excavator: Track sag of 20–30 mm (0.8–1.2 inches) measured at the track’s midpoint between the carrier roller and idler.

Check your machine’s Operation & Maintenance Manual (OMM) for the exact specification. Never guess.

How to Check Track Tension (Step-by-Step)

Step 1: Prepare the Machine

Park the machine on level, firm ground.
Extend the boom or blade to gently raise one track off the ground (for excavators or dozers).
Shut off the engine and release hydraulic pressure.
Engage safety locks.

Step 2: Measure Track Sag

Find the track's midpoint between the carrier roller and idler.
Stretch a straight edge (like a string or bar) across the top of the track frame.
Measure the vertical distance (sag) from the lowest point of the track shoe to the straight edge.
Compare your measurement to the spec in your OMM.

Step 3: Decide if Adjustment is Needed

If sag is within spec, no adjustment is necessary.
If sag exceeds spec (too loose) or is too tight, proceed to adjustment.

How to Adjust Track Tension (Grease Adjuster Type)

Most Caterpillar machines use a grease-filled adjuster cylinder to manage track tension. Adjusting it is straightforward:

To Tighten:

Locate the grease fitting (zerk) on the adjuster cylinder (near the front idler).
Use a grease gun to add grease.
Periodically re-measure sag as you add grease.
Stop when sag returns to spec.

To Loosen:

Locate the grease relief valve (usually adjacent to the fitting).
Slowly loosen the relief valve to bleed grease.
Monitor track sag as grease exits.
Close the valve once sag is within spec.

Pro Tips for California Job Sites

Muddy Conditions: Mud packs into undercarriages and artificially tightens tracks. Always clean before measuring.
Rocky Terrain: High-impact environments (like quarries or demo sites) warrant more frequent checks.
Temperature Variations: Tracks contract and expand with temperature swings. Adjustments made in the morning may need tweaking as temperatures rise.

How Often Should You Check Track Tension?

Caterpillar recommends daily visual inspections and formal measurements every 50 hours or when conditions change significantly (e.g., after working in deep mud or rocky ground).

Remember, track wear accelerates exponentially once tension falls out of spec. Preventive checks are cheap insurance.

Small Adjustment, Big Savings

Adjusting track tension isn’t glamorous, but it saves serious money. In the life of a machine, proper track maintenance can mean the difference between profitable uptime and avoidable repair bills.

Take the five minutes. Measure the sag. Make the adjustment. Your undercarriage (and your budget) will thank you.
